Deep groove ball bearings YAR206-101-2F

Bearing number : YAR206-101-2F

Size (mm) : 26.988x62x38.1

Brand : SKF

Bore Diameter (mm) : 26,988

Outer Diameter (mm) : 62

Width (mm) : 38,1

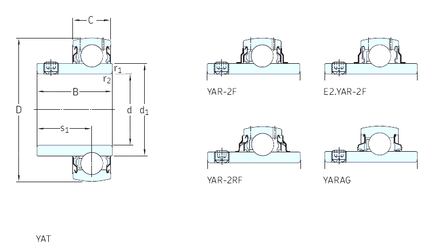

Bearing dimensions and specification in SKF catalogue:

d - 26,988 mm

D - 62 mm

B - 38,1 mm

C - 18 mm

d1 - 39,7 mm

r1 min. - 0,6 mm

r2 min. - 0,6 mm

s1 - 22,2 mm

Weight - 0,34 Kg

Basic dynamic load rating (C) - 19,5 kN

Basic static load rating (C0) - 11,2 kN

Fatigue load limit (Pu) - 0,475

Limiting speed - 6300 r/min
