Deep groove ball bearings W637/4X

Bearing number : W637/4X

Size (mm) : 4x10x3

Brand : SKF

Bore Diameter (mm) : 4

Outer Diameter (mm) : 10

Width (mm) : 3

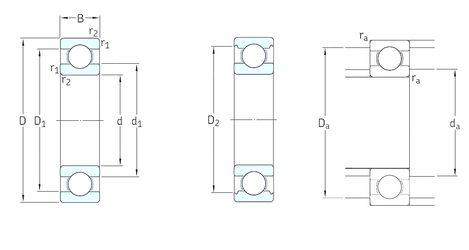

Bearing dimensions and specification in SKF catalogue:

d - 4 mm

D - 10 mm

B - 3 mm

C - 3 mm

d1 - 5,9 mm

d2 - – mm

r1 min. - 0,2 mm

r2 min. - 0,2 mm

D1 - 8,2 mm

D2 - – mm

da min. - 5,6 mm

Da max. - 8,4 mm

ra max. - 0,2 mm

Weight - 0,001 Kg

Basic dynamic load rating (C) - 0,553 kN

Basic static load rating (C0) - 0,245 kN

Fatigue load limit (Pu) - 0,011

Reference speed - 130000 r/min

Limiting speed - 80000 r/min

Calculation factor (f0) - 12

Calculation factor (kr) - 0,02
