Deep groove ball bearings W603X-2Z

Bearing number : W603X-2Z

Size (mm) : 3x9x4

Brand : SKF

Bore Diameter (mm) : 3

Outer Diameter (mm) : 9

Width (mm) : 4

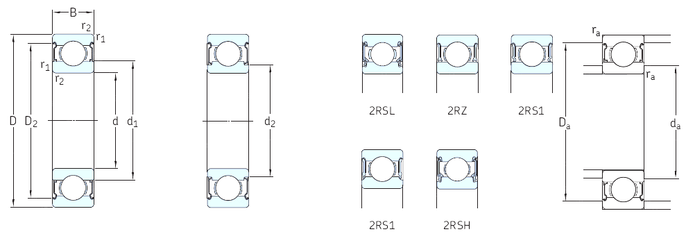

Bearing dimensions and specification in SKF catalogue:

d - 3 mm

D - 9 mm

B - 4 mm

C - 4 mm

d1 - – mm

d2 - 4,3 mm

r1 min. - 4,2 mm

r2 min. - 4,2 mm

D1 - 7,9 mm

D2 - 0,15 mm

da min. - 4,3 mm

Da max. - 8 mm

ra max. - 0,15 mm

Weight - 0,001 Kg

Basic dynamic load rating (C) - 0,377 kN

Basic static load rating (C0) - 0,095 kN

Fatigue load limit (Pu) - 0,004

Reference speed - 140000 r/min

Limiting speed - 70000 r/min

Calculation factor (f0) - 6,4

Calculation factor (kr) - 0,03
