Y-bearings take-up units TUJ 35 TF

Bearing number : TUJ 35 TF

Size (mm) : 35x37x12

Brand : SKF

Bore Diameter (mm) : 35

Outer Diameter (mm) : 37

Width (mm) : 12

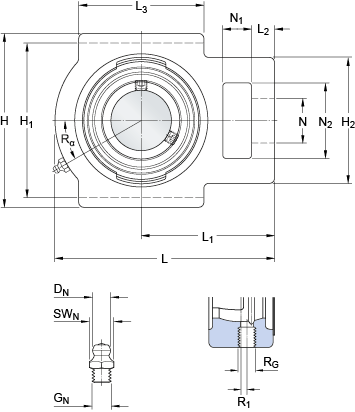

Bearing dimensions and specification in SKF catalogue:

d - 35 mm

A - 37 mm

A1 - 12 mm

A2 - 30 mm

B - 42.9 mm

H - 103 mm

H1 - 89 mm

H2 - 64 mm

L - 129 mm

L1 - 78 mm

L2 - 12 mm

L3 - 64 mm

H - 22 mm

N1 - 17 mm

N2 - 38 mm

s1 - 25.4 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 3.5 mm

Rα - 30 °

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C0 - 15.3 kN

Fatigue load limit - Pu - 0.655 kN

Limiting speed with shaft tolerance h6 - 5300 r/min

Mass bearing unit - 1.5 kg

Grub (set) screw - G2 - M6x0.75

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing -
