Y-bearings take-up units TU 1.1/2 TF

Bearing number : TU 1.1/2 TF

Size (mm) : 38.1x49x17.5

Brand : SKF

Bore Diameter (mm) : 38,1

Outer Diameter (mm) : 49

Width (mm) : 17,5

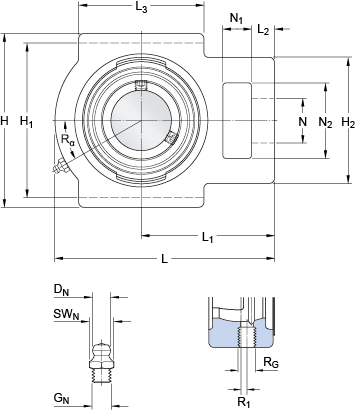

Bearing dimensions and specification in SKF catalogue:

d - 38.1 mm

A - 49 mm

A1 - 17.5 mm

A2 - 33 mm

A5 - 23.5 mm

B - 49.2 mm

H - 115 mm

H1 - 101 mm

H2 - 83 mm

L - 145 mm

L1 - 88 mm

L2 - 15 mm

L3 - 83 mm

H - 29 mm

N1 - 19 mm

N2 - 50 mm

s1 - 30.2 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 4 mm

Rα - 30 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C0 - 19 kN

Fatigue load limit - Pu - 0.8 kN

Limiting speed with shaft tolerance h6 - 4800 r/min

Mass bearing unit - 2.3 kg

Grub (set) screw - G2 - 5/16-24 UNF

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m

Housing -
