Bearing SYNT 60 LTS Bearing SYNT 60 LTS

Concentra bearing units SYNT 60 LTS

Bearing number : SYNT 60 LTS

Size (mm) : 60x80x71

Brand : SKF

Bore Diameter (mm) : 60

Outer Diameter (mm) : 80

Width (mm) : 71

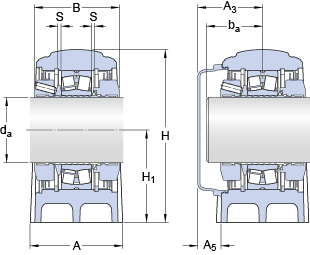

Bearing dimensions and specification in SKF catalogue:


da - 60 mm

A - 80 mm

B - 71 mm

H - 151 mm

H1 - 80 mm

H2 - 30 mm

J - 230 mm

L - 275 mm

H - 24 mm

N1 - 18 mm

S - 2.5 mm

J6 - 254 mm

J7 - 29 mm

N4 - max. - 8 mm

A3 - 73 mm

A5 - 35.5 mm

ba - min. - 38 mm

ba - max. - 65 mm

Basic dynamic load rating - C - 156 kN

Basic static load rating - C0 - 166 kN

Fatigue load limit - Pu - 18.6 kN

Limiting speed - 4100 r/min

Calculation factor - e - 0.24

Calculation factor - Y1 - 2.8

Calculation factor - Y2 - 4.2

Diameter - dm - 85 mm

Basic Designation bearing - 22212 E

Pa - 15 kN

P - 270 kN

P55° - 365 kN

P90° - 220 kN

P120° - 150 kN

P150° - 130 kN

P180° - 170 kN

Mass bearing unit - 7.7 kg

Diameter - G - 16 mm
