Y-bearing plummer block units SY 2.15/16 PF/AH

Bearing number : SY 2.15/16 PF/AH

Brand : SKF

Bore Diameter (mm) : 74,6125

Width (mm) : 63,5

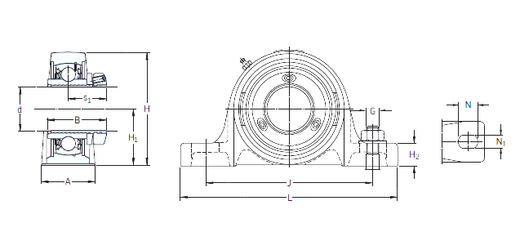

Bearing dimensions and specification in SKF catalogue:

d - 74,6125 mm

s1 - 39,8 mm

A - 71,6 mm

B - 63,5 mm

G - 20 mm

H - 166,1 mm

H1 - 82,5 mm

H2 - 32,8 mm

J - 216 mm

L - 279 mm

N - 35 mm

N1 - 22,2 mm

Weight - 7,25 Kg

Basic dynamic load rating (C) - 66,3 kN

Basic static load rating (C0) - 49 kN

Limiting speed - 2 600 r/min
