Radial spherical plain bearings SILR 120 ES

Bearing number : SILR 120 ES

Brand : SKF

Bore Diameter (mm) : 120

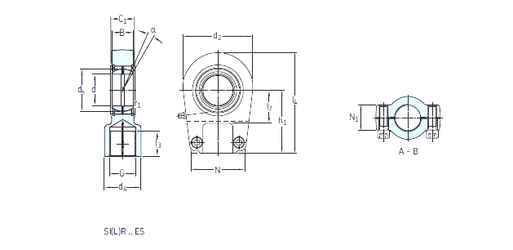

Bearing dimensions and specification in SKF catalogue:

d - 120 mm

d2 max. - 343 mm

d4 max. - 175 mm

dk - 160 mm

h1 - 310 mm

l3 min. - 135 mm

l4 max. - 493 mm

l7 min. - 138 mm

r1 min. - 1 mm

B - 85 mm

C1 max - 90,5 mm

N max - 257 mm

N1 max - 86 mm

Thread (G) - M 130x3 Tolerance 6H

Angle - 6 °

Weight - 84 Kg

Basic dynamic load rating (C) - 950 kN

Basic static load rating (C0) - 2 450 kN
