Radial spherical plain bearings SILR 100 ES

Bearing number : SILR 100 ES

Brand : SKF

Bore Diameter (mm) : 100

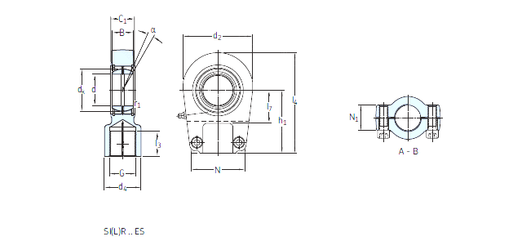

Bearing dimensions and specification in SKF catalogue:

d - 100 mm

d2 max. - 232 mm

d4 max. - 140 mm

dk - 130 mm

h1 - 235 mm

l3 min. - 111 mm

l4 max. - 362,5 mm

l7 min. - 103 mm

r1 min. - 1 mm

B - 70 mm

C1 max - 70,5 mm

N max - 167 mm

N1 max - 70,5 mm

Thread (G) - M 110x2 Tolerance 6H

Angle - 7 °

Weight - 30 Kg

Basic dynamic load rating (C) - 610 kN

Basic static load rating (C0) - 950 kN
