Radial spherical plain bearings SILQG 100 ES

Bearing number : SILQG 100 ES

Brand : SKF

Bore Diameter (mm) : 100

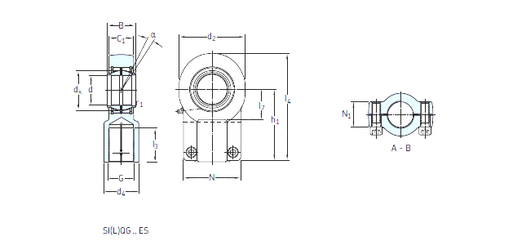

Bearing dimensions and specification in SKF catalogue:

d - 100 mm

d2 max. - 212 mm

d4 max. - 110 mm

dk - 130 mm

h1 - 210 mm

l3 min. - 96 mm

l4 max. - 324 mm

l7 min. - 97 mm

r1 min. - 1 mm

B - 100 mm

C1 max - 85,5 mm

N max - 180 mm

N1 max - 65 mm

Thread (G) - M 80x3 Tolerance 6H

Angle - 4 °

Weight - 28 Kg

Basic dynamic load rating (C) - 610 kN

Basic static load rating (C0) - 930 kN
