Radial spherical plain bearings SILKAC6M

Bearing number : SILKAC6M

Brand : SKF

Bore Diameter (mm) : 6

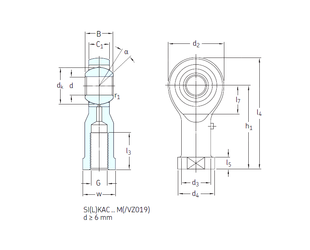

Bearing dimensions and specification in SKF catalogue:

d - 6 mm

d2 - 21 mm

d3 - 10 mm

d4 max. - 14 mm

dk - 12,7 mm

h1 - 30 mm

l3 min. - 9 mm

l4 max. - 42 mm

l5 - 5 mm

l7 min. - 10 mm

r1 min. - 0,3 mm

B - 9 mm

C1 - 7,5 mm

w - 11 Tolerance h14

Thread (G) - M6 Tolerance 6H

Angle - 13 °

Weight - 0,025 Kg

Basic dynamic load rating (C) - 4,3 kN

Basic static load rating (C0) - 5,4 kN
