Radial spherical plain bearings SILKAC12M

Bearing number : SILKAC12M

Brand : SKF

Bore Diameter (mm) : 12

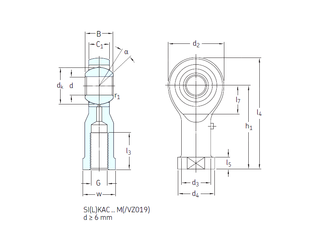

Bearing dimensions and specification in SKF catalogue:

d - 12 mm

d2 - 33 mm

d3 - 17,5 mm

d4 max. - 23 mm

dk - 22,2 mm

h1 - 50 mm

l3 min. - 18 mm

l4 max. - 68 mm

l5 - 6,5 mm

l7 min. - 16 mm

r1 min. - 0,3 mm

B - 16 mm

C1 - 12,5 mm

w - 19 Tolerance h14

Thread (G) - M12 Tolerance 6H

Angle - 13 °

Weight - 0,11 Kg

Basic dynamic load rating (C) - 13,4 kN

Basic static load rating (C0) - 14 kN
