Bearing 22210 EK Bearing 22210 EK

Spherical roller bearings 22210 EK

Bearing number : 22210 EK

Size (mm) : 50x90x23

Brand : SKF

Bore Diameter (mm) : 50

Outer Diameter (mm) : 90

Width (mm) : 23

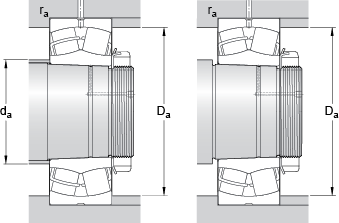

Bearing dimensions and specification in SKF catalogue:


d - 50 mm

D - 90 mm

B - 23 mm

d2 - - 60 mm

D1 - - 79 mm

b - 5.5 mm

K - 3 mm

r1,2 - min. - 1.1 mm

da - min. - 55 mm

da - max. - 60 mm

Da - max. - 83 mm

ra - max. - 1 mm

Basic dynamic load rating - C - 107 kN

Basic static load rating - C0 - 108 kN

Fatigue load limit - Pu - 12 kN

Reference speed - 7000 r/min

Limiting speed - 9500 r/min

Calculation factor - e - 0.24

Calculation factor - Y1 - 2.8

Calculation factor - Y2 - 4.2

Calculation factor - Y0 - 2.8

Weight - 0.62 kg
