Self-aligning ball bearings 1215K

Bearing number : 1215K

Size (mm) : 75x130x25

Brand : SKF

Bore Diameter (mm) : 75

Outer Diameter (mm) : 130

Width (mm) : 25

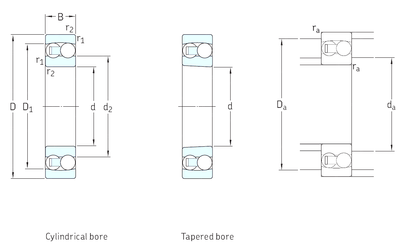

Bearing dimensions and specification in SKF catalogue:

d - 75 mm

D - 130 mm

B - 25 mm

C - 25 mm

d2 - 93 mm

r1 min. - 1,5 mm

r2 min. - 1,5 mm

D1 - 116 mm

da min. - 84 mm

Da max. - 121 mm

ra max. - 1,5 mm

Weight - 1,35 Kg

Basic dynamic load rating (C) - 39 kN

Basic static load rating (C0) - 15,6 kN

Fatigue load limit (Pu) - 0,8

Reference speed - 10000 r/min

Limiting speed - 6700 r/min

Calculation factor (e) - 0,17

Calculation factor (kr) - 0,04

Calculation factor (Y0) - 4

Calculation factor (Y1) - 3,7

Calculation factor (Y2) - 5,7
