Spherical roller bearings 22244 CCK/W33

Bearing number : 22244 CCK/W33

Size (mm) : 220x400x108

Brand : SKF

Bore Diameter (mm) : 220

Outer Diameter (mm) : 400

Width (mm) : 108

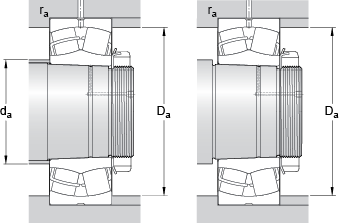

Bearing dimensions and specification in SKF catalogue:

d - 220 mm

D - 400 mm

B - 108 mm

d2 - - 263 mm

D1 - - 346 mm

b - 16.7 mm

K - 9 mm

r1,2 - min. - 4 mm

da - min. - 229 mm

da - max. - 263 mm

Da - max. - 383 mm

ra - max. - 3 mm

Basic dynamic load rating - C - 1835 kN

Basic static load rating - C0 - 2360 kN

Fatigue load limit - Pu - 196 kN

Reference speed - 1500 r/min

Limiting speed - 2000 r/min

Calculation factor - e - 0.27

Calculation factor - Y1 - 2.5

Calculation factor - Y2 - 3.7

Calculation factor - Y0 - 2.5

Weight - 59 kg
